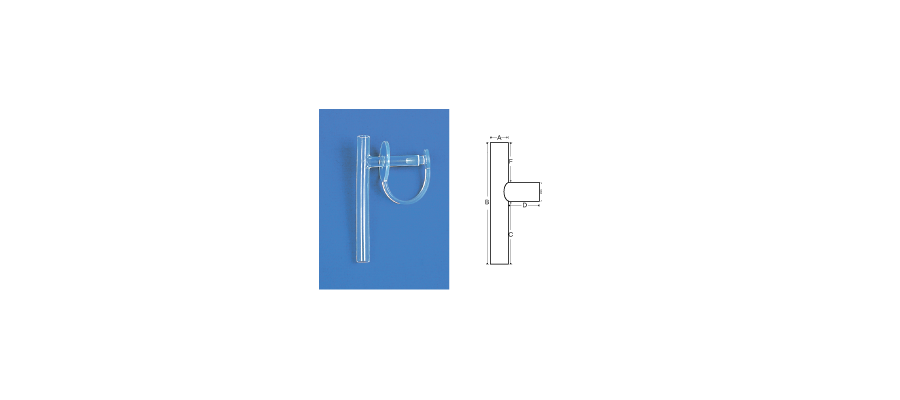

Tracheal T-Tubes

Designed for the surgical management of tracheal and subglottic stenosis and the reconstruction of cervical and thoracic trachea.

• 100% medical grade silicone
• Easily trimmed to meet patient's needs
• Large soft collar with closure attached

Standard Size

Item No.	A	B	C	D	E	F	Qty/Box
70-50080	8 mm	37 mm	16.5 mm	32 mm	6.5 mm	14 mm	1
70-50100	10 mm	50 mm	24 mm	42 mm	8 mm	18 mm	1
70-50120	12 mm	66 mm	32 mm	50 mm	10.5 mm	23 mm	1
70-50140	14 mm	71 mm	34 mm	50 mm	10.5 mm	26 mm	1
70-50160	16 mm	72 mm	34 mm	60 mm	11.5 mm	26 mm	1

Long Size

Item No.	A	B	C	D	E	F	Qty/Box
70-50081	8 mm	80 mm	60 mm	32 mm	6.5 mm	14 mm	1
70-50101	10 mm	96 mm	70 mm	42 mm	8 mm	18 mm	1
70-50121	12 mm	108 mm	75 mm	50 mm	10.5 mm	23 mm	1
70-50141	14 mm	112 mm	75 mm	50 mm	10.5 mm	26 mm	1
70-50161	16 mm	122 mm	85 mm	60 mm	11.5 mm	26 mm	1
