Burs

Ultrabur Otologic Drill

Hand-held microdrill for stapedotomy, stapedectomy, and fashion of homo/auto bone grafts. The narrow, lightweight design allows for better visualization in middle ear.

  • Speed: 7,000 rpm max
  • Provided sterile
Item No. Description Qty/Box
10-3030 Diamond tip   0.6 mm 1
10-3031 Diamond tip   0.7 mm 1

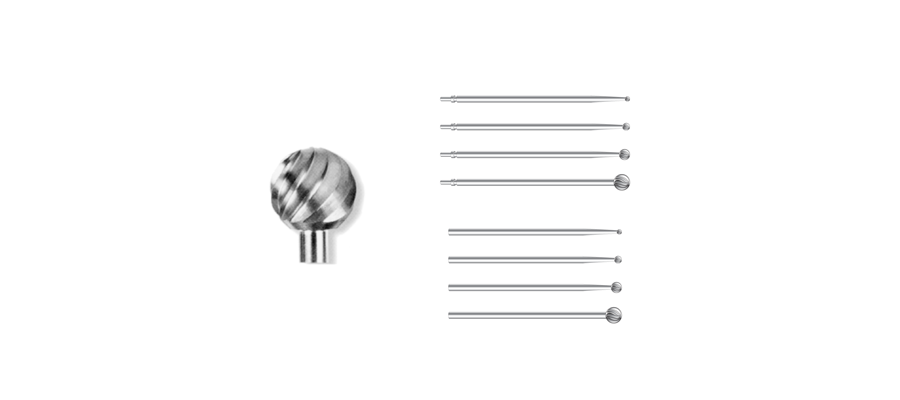

Round Carbide Bur

The round carbide bur is designed for use with straight shank drill systems and Xomed® power hand pieces.

  • Multiple uses
  • Provided sterile
Number w/ Notch Number w/o Notch Head Diameter (mm) Length (mm) No. Flutes
BC-70050 BC-70050P 0.5 70 4
BC-70100 BC-70100P 1.0 70 6
BC-70150 BC-70150P 1.5 70 6
BC-70200 BC-70200P 2.0 70 6
BC-70250 BC-70250P 2.5 70 6
BC-70300 BC-70300P 3.0 70 8
BC-70350 BC-70350P 3.5 70 8
BC-70400 BC-70400P 4.0 70 8
BC-70450 BC-70450P 4.5 70 10
BC-70500 BC-70500P 5.0 70 10
BC-70550 BC-70550P 5.5 70 10
BC-70600 BC-70600P 6.0 70 10
BC-70650 BC-70650P 6.5 70 10
BC-70700 BC-70700P 7.0 70 12
BC-70000 BC-70000P Complete Set of Each Size

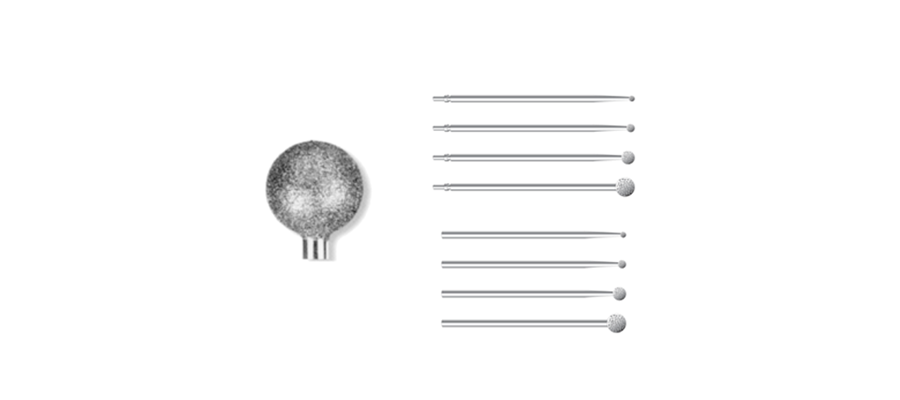

Round Diamond Bur

The round diamond bur is designed for use with straight shank drill systems and Xomed® power hand pieces.

  • Multiple uses
  • Provided sterile
Number w/ Notch Number w/o Notch Head Diameter (mm) Length (mm)
BD-70050 BD-70050P 0.5 70
BD-70100 BD-70100P 1.0 70
BD-70150 BD-70150P 1.5 70
BD-70200 BD-70200P 2.0 70
BD-70250 BD-70250P 2.5 70
BD-70300 BD-70300P 3.0 70
BD-70350 BD-70350P 3.5 70
BD-70400 BD-70400P 4.0 70
BD-70500 BD-70500P 5.0 70
BD-70600 BD-70600P 6.0 70
BD-70000 BD-70000P Complete Set of Each Size
O25300 Bur Rack - Holds 34 straight shaft burs, length 70 mm
