Personal Lighting Systems

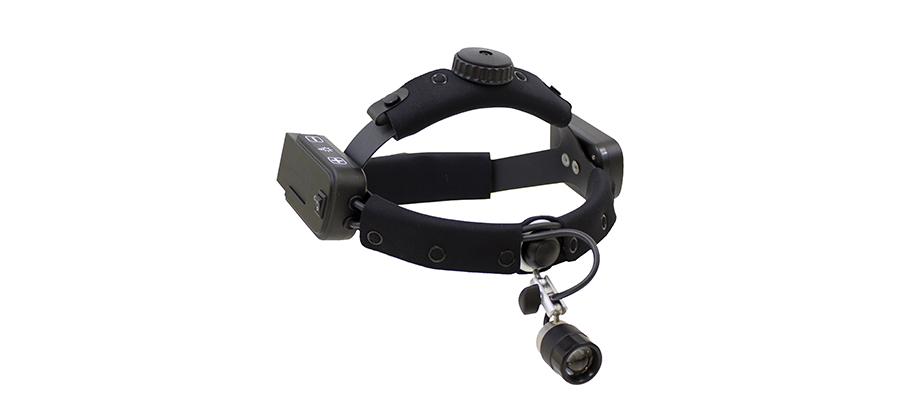

BrightStar™ High Power
Wireless LED Headlight System
- Focusable, battery powered, bright, white LED
- Ultra comfortable, adjustable black headband
- Rechargeable, ultra long lasting lithium ion battery (7 hours continuous)
- Includes charging station
Light Spot Distance - Spot Ø (mm)
20-30 cm - 38-55 mm
40 cm - 53-85 mm
50 cm - 68-110 mm
60 cm - 80-135 mm
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-4800 | BrightStar™ High Power wireless LED Headlight System includes: High Power wireless LED headlight with removable dual (headband mounted) lithium ion battery packs, charging station, complete, black headband |
1 |
| 34-4701 | Lithium ion battery power pack replacement for 34-4800 | 1 |
| 34-4803 | Dual charging station replacement | 1 |

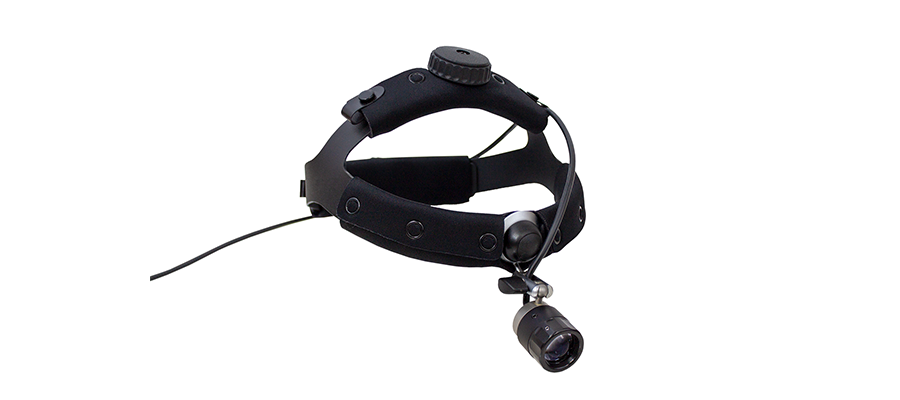

BrightStar™ High Power
Wired Headlight System
- Focusable, battery powered, bright, white LED
- Light emitting diode technology (LED), life > 30,000 hours
- Ultra-light and comfortable, adjustable crowned headlight with replaceable liners
- Long lasting, rechargeable lithium ion battery (4 hours continuous)
Light Spot Distance - Spot Ø (mm)
20-30 cm - 38-55 mm
40 cm - 53-85 mm
50 cm - 68-110 mm
60 cm - 80-135 mm
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-4810 | High Powered Headlight with belt mounted battery pack |
1 |
| 34-4811 | Belt worn lithium ion battery for headlight | 1 |
| 34-4812 | 110V transformer/charger for battery pack | 1 |
BrightStar™ Ultra
Wireless LED Headlight System
- Focusable, battery powered, bright, white LED
- Ultra comfortable, adjustable black headband
- Rechargeable, ultra long lasting lithium ion battery (3-5 hours continuous)
- Includes charging station
Light Spot Distance - Spot Ø (mm)
20 cm - 11-40 mm
30 cm - 13- 63 mm
40cm - 25-130mm
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-4700 | BrightStar™ Ultra wireless LED Headlight System includes: Ultra Wireless LED headlight with removable (headband mounted) lithium ion battery pack, charger 110-220v, black headband |
1 |
| 34-4701 | Lithium ion battery power pack replacement for 34-4700 | 1 |
| 34-4702 | Charger 110/220 VAC for 34-4700 | 1 |
| 34-4703 | Charging Station | 1 |

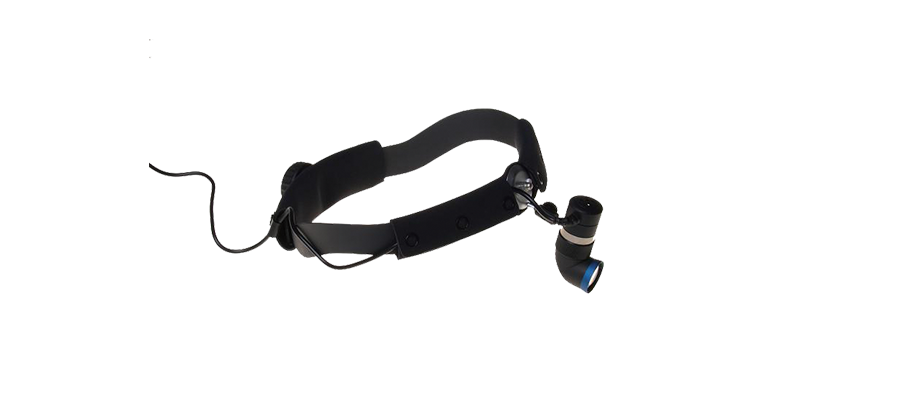

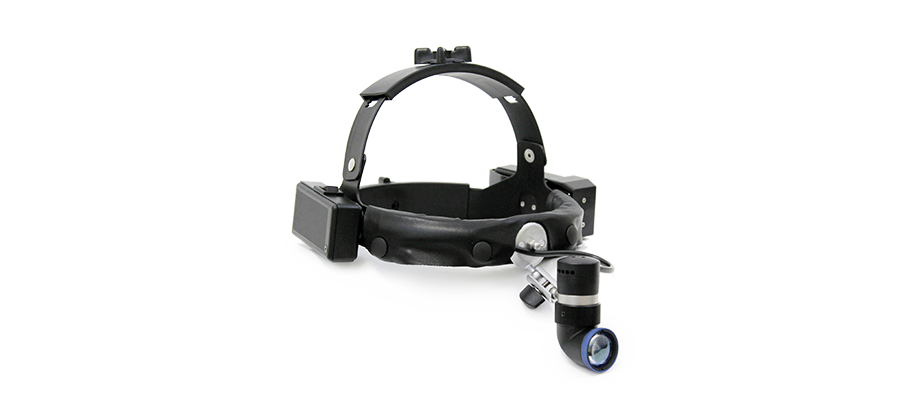

BrightStar™ II
LED Headlight System
- Focusable, battery powered, bright, white LED
- Ultra comfortable, adjustable black headband
- Includes charging station
Light Spot Distance - Spot Ø (mm)
20 cm - 11-40 mm
30 cm - 13- 63 mm
40cm - 25-130mm
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-4190 | BrightStar™ II LED headlight, lithium ion battery, charger 110-220v, complete, black headband |
1 |
| 34-4191 | Lithium Ion battery pack replacement with belt clip | 1 |
| 34-4192 | Charger for 34-4190 | 1 |

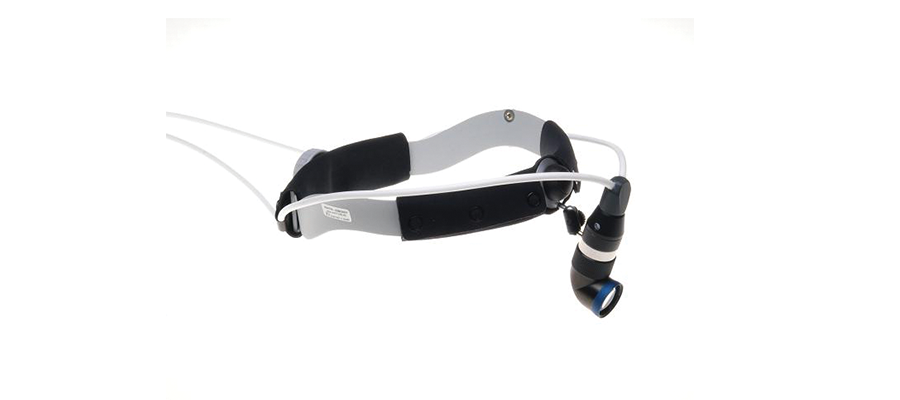

IFO Fiberoptic Headlight
with Open Headband
- Adjustable lightweight headband, F/O headlight, bifurcated clear cable illumination for long term balance, comfort and wear
- High performance optical system
- Wide focus range and powerful light spot
Light Spot Distance - Spot Ø (mm)
20 cm - 11-68 mm
30 cm - 12-101 mm
40 cm - 13-136 mm
50 cm - 14-173 mm
60 cm - 16-208 mm
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-4160 | IFO Focusable Fiberoptic Headlight, open headband, bifurcated cable illumination, black headband |
1 |

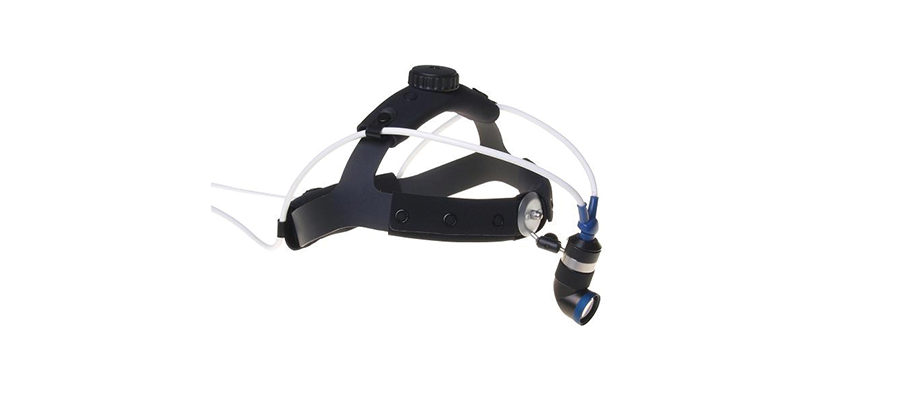

IFO Fiberoptic Headlight
with Cradle Headband
- Super adjustable lightweight headband , F/O headlight, bifurcated clear cable illumination for long term balance, stability, comfort and wear
- High performance optical system
- Wide focus range and powerful light spot
Light Spot Distance - Spot Ø (mm)
20 cm - 11-68 mm
30 cm - 12-101 mm
40 cm - 13-136 mm
50 cm - 14-173 mm
60 cm - 16-208 mm
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-4360 | IFO Focusable Fiberoptic Headlight, cradle headband, bifurcated cable illumination, black headband |
1 |

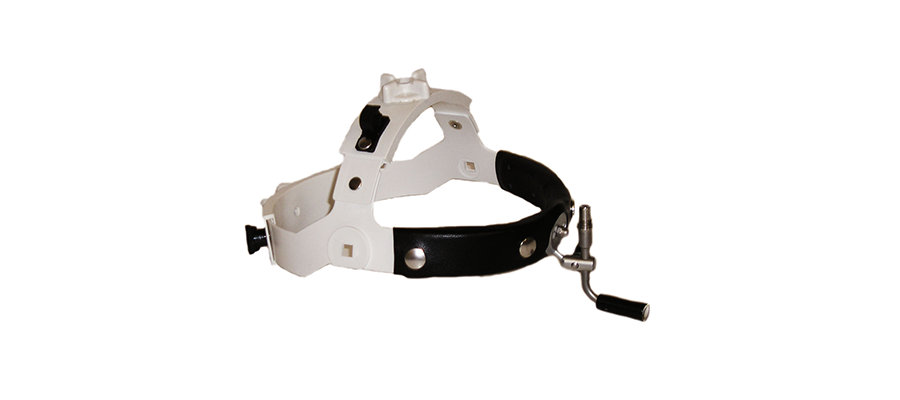

Fiberoptic Headlight
- Ultra lightweight
- Adjustable for comfortable fit
- Can be used with most standard cables, 3 mm, 9 ft cable available
- Cables available to fit light sources of: K. Storz, Pilling, Olympus, Wolf ACMI
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-4060 | Fiber Optic Headlight (cable not included) |
1 |
| 34-4061 | Fiber Optic Headlight, Micro Spot (cable not included) |
1 |
| 34-4065 | Fiber Optic Cable, ACMI fittings, 3.0 mm, 9' long |
1 |

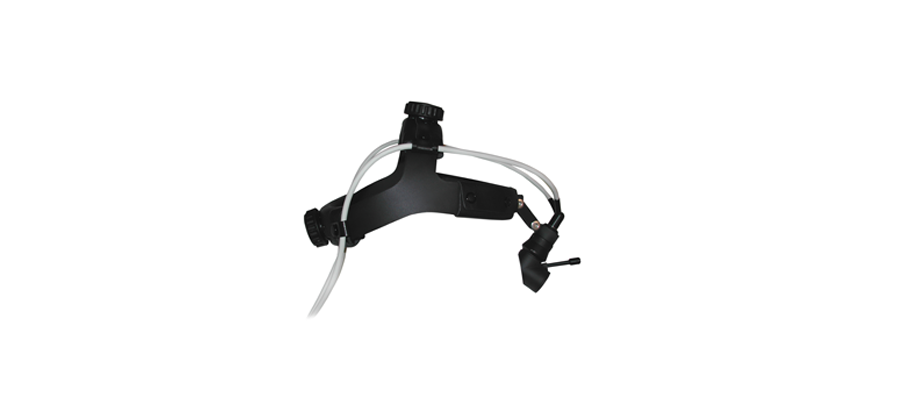

Fiberoptic Headlight
- 90° focusable headlight
- Headlight module, 10-100mm variable spot
- Detachable joysticks (2)
- Set of cushioned detachable sweatbands
- Bifurcated cable, 9" with Wolf lens proximal as standard
| Item No. | Description | Qty/Box |
|---|---|---|
| GMF-H100 | Surgical headlight with cradle |
1 |
Universal Carrying Case
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-4096 | Carrying case for headlights |
1 |

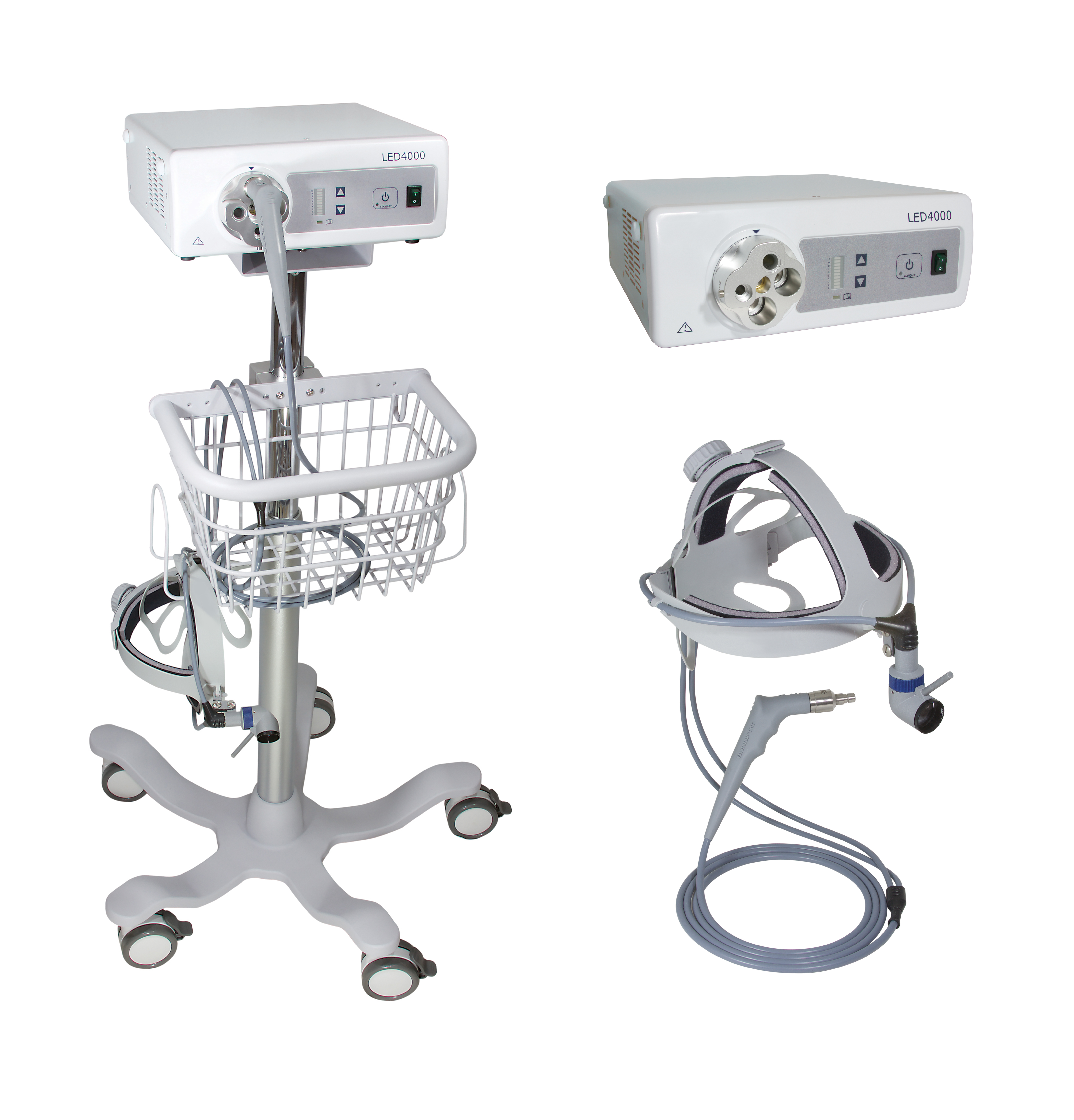

Digital LED4000 Light System
- Lamp Light emitting diode technology (LED), life > 30,000 hours
- Color temperature 6500° K @ 75 CRI or 5600°K @ 92 CRI
- Intensity control Electronic (PWM) from 0 to 100%
- Turret, 4 ports ACMI, Olympus, Storz, Wolf (others available)
- Power 100-240V AC, 50/*60 Hz, worldwide operation
- Dimensions (WxHxD) 11” W x 4.5” H x 11” D; weight 3.4kg
- Weight 7.5 lbs (3.4kg)
- Regulatory IEC60601-1 3rd Edition, CAN/CSA C22.2 No. 601.1
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-5000 | Swivel mount floor stand and swivel mount floor stand adapter mounting plate kit | 1 |
| 34-4900 | Deluxe Headlight with 20-110mm variable spot module and 4mm bifuracted headlight cable (black) with Wolf L/S end tip | 1 |
| 34-4950 | Digital LED lightsource with ergonomic 4-port turret, PWM dimming control, cable end-tip sensor, standyby mode, RS32 & USB port for remote control | 1 |
Other fittings available (ex. Karl Storz Pilling, Olympus, Wolf )
Custom size cables available upon request

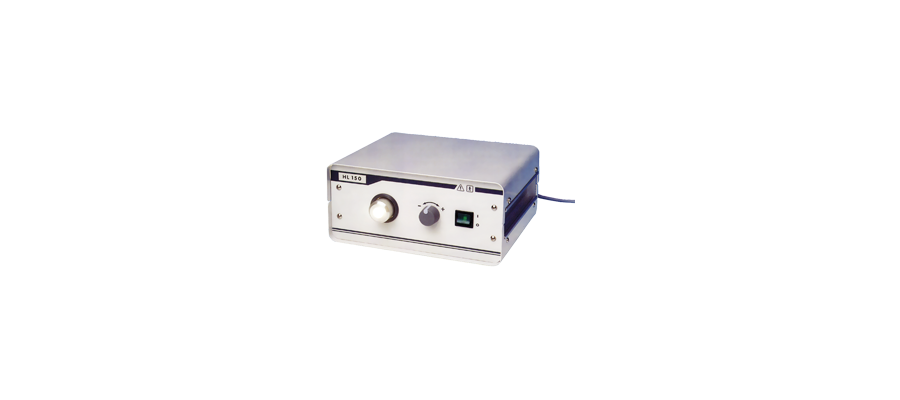

Universal Halogen Lightsource HL 150
- Compact, lightweight halogen lightsource for universal use
- Lamp - 1 Halogen reflector lamp, 150 Watt, 15 V
- Color temperature - 3.600oK
- Intensity control - stepless/mechanical diaphragm
- Light guide - adapter exchangeable
- Power supply - 110/115 VAC or 230/240 VAC, switchable
- Dimensions (WxHxD) - 6.8" x 3" x 8", 175 x 82,5 x 202 mm
- Weight - 3,5 kg
- Power consumption - max. 160 Watt
- Manufactured/tested acc. IEC 601-1 / EN 60601-1, 93/42 ECC
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-3135 | Halogen Light Box 150 watt ACMI connector (pictured) |
1 |
Halogen & Xeon Light Cable Adapters
Female connectors for F/O Cables & Flexible scope Light cable connectors.
| Item No. | Description | Qty/Box | |
|---|---|---|---|
| 34-0754 | Light box adapter for ACMI | 1 | |
| 34-0742 | Light box adapter for Olympus | 1 | |
| 34-0752 | Light box adapter for Storz | 1 | |
| 34-0753 | Light box adapter for Wolf | 1 | |
| 34-0755 | Light box adapter for Machita | 1 | |
| Stands and Light Box Trolleys – Available upon request | |||

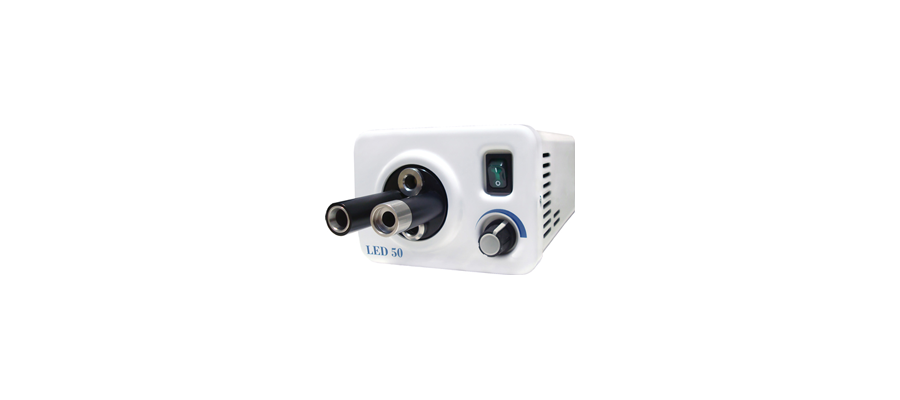

LED Lightsource
- Lamp - Light emitting diode technology (LED), life > 50,000 hours
- Color temperature - 6500° K Normal
- Intensity control - Electronic (PWM) from 0 to 100%
- Turret, 4 ports - ACMI, Olympus, Storz, Wolf (others available)
- Non-Turret model - Available upon request
- Power - 52W typical; 10-240V AC, 50/*60 Hz, worldwide operation
- Dimensions (WxHxD) - 4.65" x 3.32" x 7.25" mm (~10" overall)
- Weight - 2.5lbs (1.14kg), EN60601-1-2
- Regulatory - UL60601-1, CAN/CSA C22.2 No. 601.1, marked
| Item No. | Description | Qty/Box |
|---|---|---|
| LLS-2000T | Premium light source 4-turret |
1 |

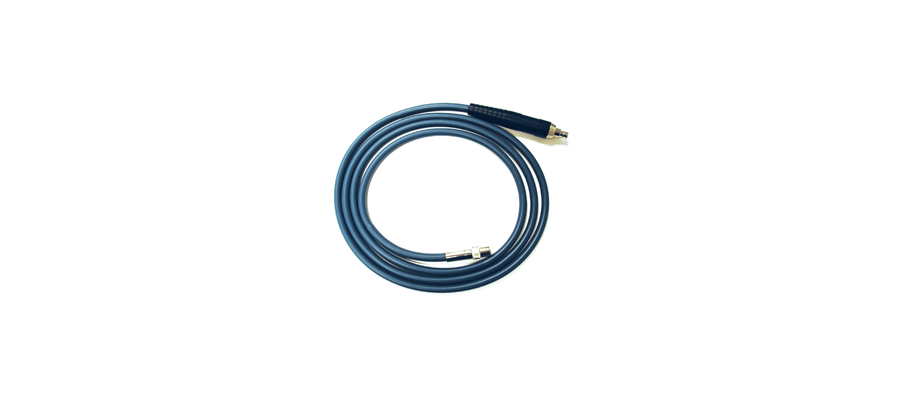

Cables
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-3140 | Fiber Optic Cable, ACMI fittings, 4.0mm 8' long | 1 |
| 34-4065 | Fiber Optic Cable, ACMI fittings, 3.0 mm, 9' long | 1 |
Other fittings available (ex. Karl Storz Pilling, Olympus, Wolf )
Custom size cables available upon request

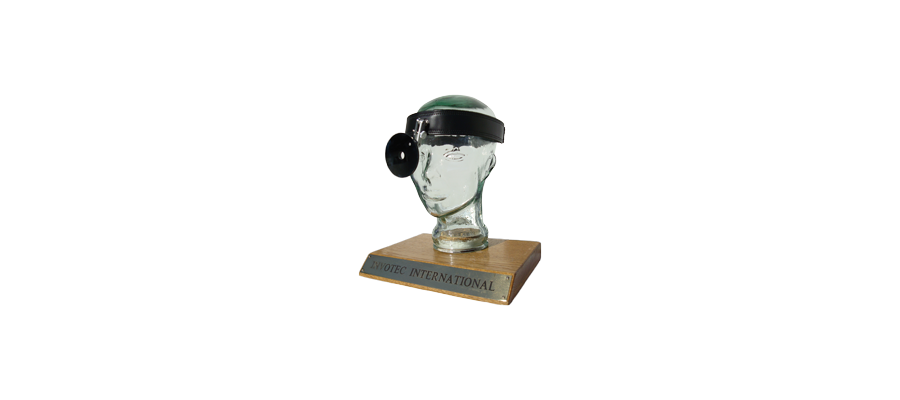

Head Mirror
- Unbreakable exam mirror - Guaranteed!
- Comfortable leather headband with velcro adjustability
- Removable/washable headband liner
- Mirror is approximately 2.9 inches in diameter
- View-hole is 0.5 inches in diameter
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-4010 | Unbreakable Head Mirror w/headband | 1 |
| 34-4011 | Unbreakable Head Mirror only | 1 |
| 34-4012 | Headband only | 1 |
| 34-4075 | Replacement liners for headband | 1 |

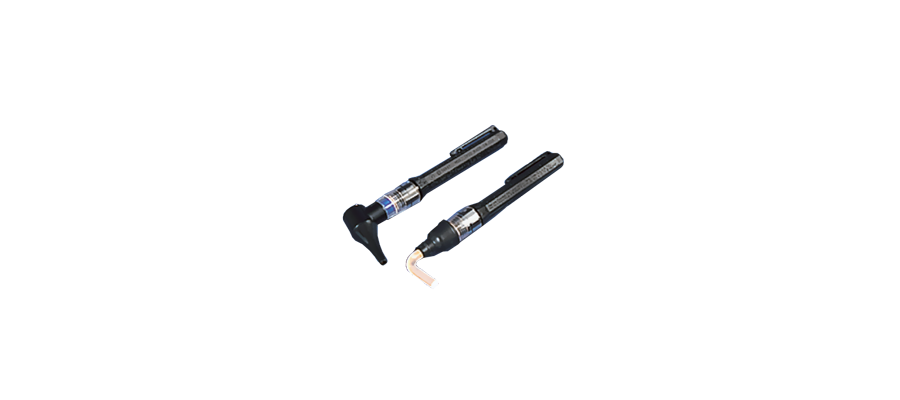

Pocket Lights
- Small convenient size - very lightweight
- Bright white Xenon bulb
- Otoscopic adapter for standard disposable specula
- Nasal/Oral exam head
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-4000 | ENT Pocket Light w/Case | 1 |
BrightStar™ Portable Light Source
- Bright, white, portable, efficient light source for Rod Lens Otoscopes, Sinus Scopes, Indirect Vision Rod Lens Laryngoscopes, Flexible Nasopharyngoscopes
- Uses the same belt clipped battery pack as the headlight
- Portable LED, Battery powered light source
| Item No. | Description | Qty/Box |
|---|---|---|
| 34-4020 | BrightStar™ LED complete Light Source System | 1 |
| 34-4021 | ACMI scope adapter | 1 |
| 34-4022 | Richard Wolf Scope adapter | 1 |
| 34-4023 | Karl Storz, Gyrus, Olympus scope adaptor | 1 |
| 34-4092 | Charger and wall connector | 1 |
