Burs

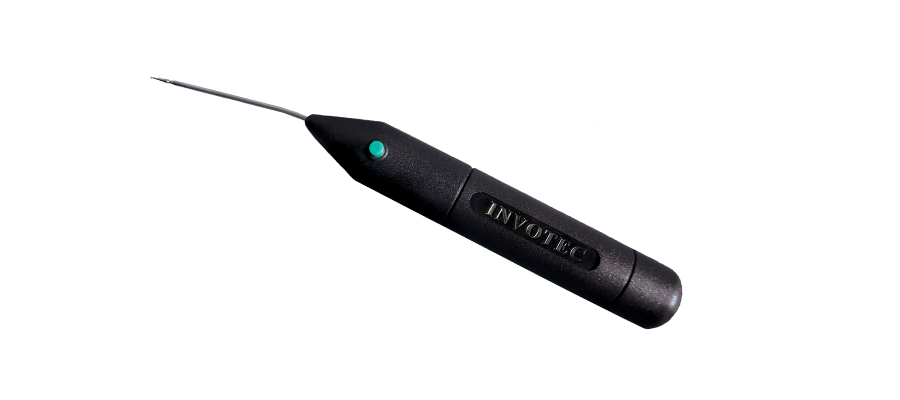

Ultrabur Otologic Drill
Hand-held microdrill for stapedotomy, stapedectomy, and fashion of homo/auto bone grafts. The narrow, lightweight design allows for better visualization in middle ear.
- Speed: 7,000 rpm max
- Provided sterile
| Item No. | Description | Qty/Box | |
|---|---|---|---|
| 10-3030 | Diamond tip | 0.6 mm | 1 |
| 10-3031 | Diamond tip | 0.7 mm | 1 |
Round Carbide Bur
The round carbide bur is designed for use with straight shank drill systems and Xomed® power hand pieces.
- Multiple uses
- Provided sterile
| Number w/ Notch | Number w/o Notch | Head Diameter (mm) | Length (mm) | No. Flutes | |
|---|---|---|---|---|---|
| BC-70050 | BC-70050P | 0.5 | 70 | 4 | |
| BC-70100 | BC-70100P | 1.0 | 70 | 6 | |
| BC-70150 | BC-70150P | 1.5 | 70 | 6 | |
| BC-70200 | BC-70200P | 2.0 | 70 | 6 | |
| BC-70250 | BC-70250P | 2.5 | 70 | 6 | |
| BC-70300 | BC-70300P | 3.0 | 70 | 8 | |
| BC-70350 | BC-70350P | 3.5 | 70 | 8 | |
| BC-70400 | BC-70400P | 4.0 | 70 | 8 | |
| BC-70450 | BC-70450P | 4.5 | 70 | 10 | |
| BC-70500 | BC-70500P | 5.0 | 70 | 10 | |
| BC-70550 | BC-70550P | 5.5 | 70 | 10 | |
| BC-70600 | BC-70600P | 6.0 | 70 | 10 | |
| BC-70650 | BC-70650P | 6.5 | 70 | 10 | |
| BC-70700 | BC-70700P | 7.0 | 70 | 12 | |
| BC-70000 | BC-70000P | Complete Set of Each Size | |||
Round Diamond Bur
The round diamond bur is designed for use with straight shank drill systems and Xomed® power hand pieces.
- Multiple uses
- Provided sterile
| Number w/ Notch | Number w/o Notch | Head Diameter (mm) | Length (mm) |
|---|---|---|---|
| BD-70050 | BD-70050P | 0.5 | 70 |
| BD-70100 | BD-70100P | 1.0 | 70 |
| BD-70150 | BD-70150P | 1.5 | 70 |
| BD-70200 | BD-70200P | 2.0 | 70 |
| BD-70250 | BD-70250P | 2.5 | 70 |
| BD-70300 | BD-70300P | 3.0 | 70 |
| BD-70350 | BD-70350P | 3.5 | 70 |
| BD-70400 | BD-70400P | 4.0 | 70 |
| BD-70500 | BD-70500P | 5.0 | 70 |
| BD-70600 | BD-70600P | 6.0 | 70 |
| BD-70000 | BD-70000P | Complete Set of Each Size | |
| O25300 | Bur Rack - Holds 34 straight shaft burs, length 70 mm | ||
