Disposable Suctions

House/Hough Style Handles from Invotec

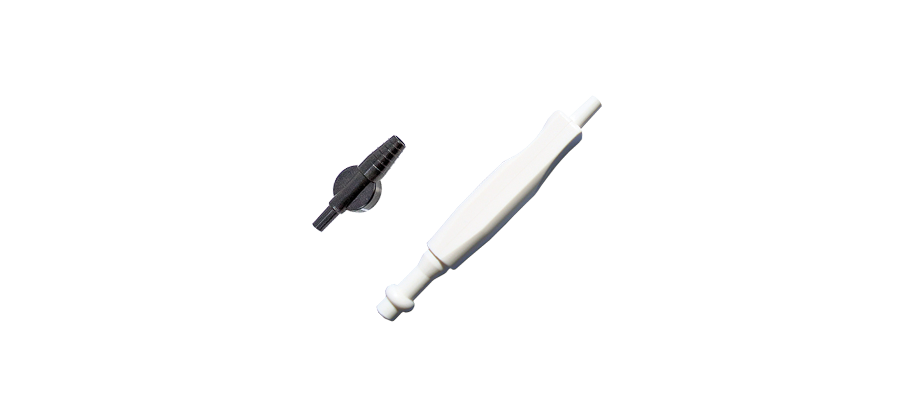

House/Hough Style Handle

• Used as a connector between the suction tip and the suction tubing
• Sterile, packaged in individual peel pouch


Rhinologic/Otologic

Number Description Qty/Box
66500992 Suction Tip Handle with control hole 20
66505009 Suction Tip Handle without control hole 20
66500990 Elongated House/Hough style handle with finger control hole, 3" 10

Handles

• Non-sterile

Number Description Qty/Box
NZ3238-100 Suction controller, black, with finger hole 100
Metal Suction Tips

Metal Suction Tip

• Applicable for ear examinations, suction of wax and other fluids, paracentesis
• The curved angle is specially designed for microscopic examination and surgery
• Quick connector suction tip handle is easy to change during surgery
• Sterile, packaged in individual peel pouch
• Available in broad variety of lumen sizes

Number Description Color Qty/Box
65000045 0.4 mm x 80 mm Lilac 20
66500072 0.7 mm x 80 mm Black 20
66500100 1.0 mm x 70 mm, 3 Fr Brown 20
66500102 1.0 mm x 80 mm, 3 Fr Brown 20
66500140 1.4 mm x 70 mm, 4 Fr White 20
66500142 1.4 mm x 80 mm, 4 Fr White 20
66500200 2.0 mm x 80 mm, 14 g, 6 Fr Green 20
66500250 2.5 mm x 80 mm, 7.5 Fr Orange 20
66500300 3.0 mm x 80 mm, 9 Fr Blue 20
66500400 4.0 mm x 80 mm, 12 Fr Yellow 20
66509100 1.0 mm x 100 mm, 3 Fr Brown 20
66509140 1.4 mm x 100 mm, 4 Fr White 20
66509200 2.0 mm x 100 mm, 6 Fr Green 20
66509250 2.5 mm x 110 mm, 7 Fr Orange 20
66509300 3.0 mm x 100 mm, 9 Fr Blue 20
66516020 2.0 mm x 150 mm, 6 Fr Green 10
66516030 3.0 mm x 150 mm, 9 Fr Yellow 10
66516040 4.0 mm x 150 mm, 12 Fr Blue 10
Rosen-House Style Suction Needles

Rosen-House Style Suction Needle

Number Description Dimensions Color Qty/Box
66500040 Micro suction tip 0.4 mm x 70 mm, 26 G Lilac 20
66500045 Micro suction tip 0.4 mm x 80 mm, 26 G Lilac 20
66500070 Micro suction tip 0.7 mm x 70 mm, 22 G Black 20
66500072 Micro suction tip 0.7 mm x 80 mm, 22 G Black 20
66500100 Micro suction tip 1.0 mm x 70 mm, 20 G, 3 Fr Brown 20
66500140 Micro suction tip 1.4 mm x 70 mm, 18 G, 4 Fr White 20
66500208 Suction tip 2.0 mm x 70 mm, 14 G, 5 Fr Green 20
66500250 Suction tip 2.5 mm x 80 mm, 7 Fr Orange 20
66500300 Micro suction tip 3.0 mm x 80 mm, 9 Fr Blue 20
Frazier/Ferguson Nasal Style Suction

Frazier/Ferguson Nasal Style Suction

• Designed for Rhinology surgery or examination
• Suction tip made of medical grade stainless steel
• Sterile, packed in individual peel pouch
• Available with one side hole (velvet eye) at tip end to avoid biopsy effect (tissue damage)

Number Description/Dimensions Qty/Box
66501020 2.0mm x 150mm, 6 Fr Clear 10
66501030 3.0mm x 150mm, 9 Fr Clear 10
66501040 4.0mm x 150mm, 12 Fr Clear 10
66511020 2.0mm x 150mm, 6 Frwith side hole Clear 10
66511030 3.0mm x 150mm, 9 Fr with side hole Clear 10
66511040 4.0mm x 150mm, 12 Fr with side hole Clear 10
V. Eicken Sinus Antrum Cannula, Long Curve

V. Eicken Sinus Antrum Cannula, Long Curve

• FESS procedures
• Olive ball tip for atraumatic suction dissection or removal of synechia
• Pencil grip
• Sterile

Number Description Dimensions Color Qty/Box
66503020 SS Olive Tip Suction 2.0mm x 150mm, 6", long curve Clear 10
66503025 SS Olive Tip Suction 2.5mm x 150mm, 6", long curve Clear 10
66503030 SS Olive Tip Suction 3.0mm x 150mm, 6", long curve Clear 10
66503035 SS Olive Tip Suction 3.5mm x 150mm, 6", long curve Clear 10
66503040 SS Olive Tip Suction 4.0mm x 150mm, 6", long curve Clear 10
Single Use Plastic Tips

Single Use Plastic Tips

• Used during Rhinology, Laryngology, and Sinus procedures
• Plastic suction tip with smoothly rounded catheter tip
• Sterile product, packed in individual peel pouch

Number Description Dimensions Color Qty/Box
66100635 Plastic Tip, curved 3.0mm x 160mm, 9 Fr Blue 10
66100643 Plastic Tip, curved 4.0mm x 160mm, 12 Fr White 10
66100627 Plastic Tip, curved 2.0mm x 160mm, 6 Fr Green 10
McGee/Schuknecht Style Foot Plate Suction Tip

McGee/Schuknecht Style Foot Plate Suction Tip

Number Description Dimensions Color Qty/Box
66507040 Baron/Rosen step down Needle Suction 0.7 (22 G) to 0.4 mm x 77 mm tip, 26 g, shaft 22 g Lilac 20
Invotec Single-use Suction Sets

Invotec Single-use Suction Sets

• Sterile product, packaged in individual peel pouch

Number Description Qty/Box
66502070 Middle Ear Surgery Set includes: Metal Suction Tips (2 each 1.0mm, 1.4mm and 2.00mm), handle and 3.5m suction tube 5
Medibender

Medibender

A bending instrument for Metal Suction Tips
• Stainless steel
• Non-sterile
• Autoclavable

Number Description Qty/Box
6066500 Medibender for use with 2 mm -1.4 mm -1 mm Ø Single sided 1
6066501 Medibender for use with 3 mm (9 FR) - 4 mm (12 FR) Ø Double sided 1
Suction Tubes

Suction Tubes

Number Description Length Qty/Box
66153510 Suction Tubing for metal tips PVC 3.5 mm 5
6099996 Suction Tubing for plastic tips PVC 3.5 5
